Musikgerät 3099
Grundig Radio-: Musikgerät 3099 [Radio] ID = 56426 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Grundig Portugal || Grundig USA / Lextronix | ||||
|---|---|---|---|---|---|
| Year: 1959/1960 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 8: ECC85 ECH81 EF89 EABC80 EM84 ECC83 EL95 EL95 | ||||
| Semiconductors (the count is only for transistors) | B250C75 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Musikgerät 3099 - Grundig Radio-Vertrieb, RVF, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 610 x 360 x 260 mm / 24 x 14.2 x 10.2 inch |
| Notes | Musikgerät 3099, drei Ovallautsprecher. |
| Net weight (2.2 lb = 1 kg) | 11.5 kg / 25 lb 5.3 oz (25.33 lb) |
| Price in first year of sale | 329.00 DM |
| External source of data | Erb |
| Source of data | HdB d.Rdf-& Ferns-GrH 1959/60 |

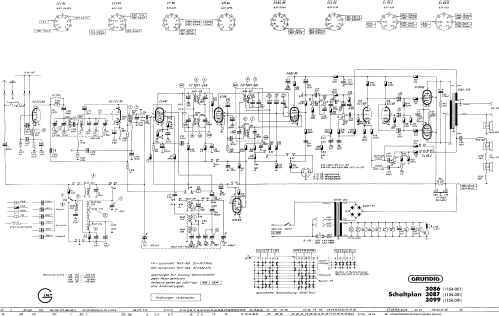

| Literature/Schematics (1) | -- Original-techn. papers. |
