Musikschrank 6063W/3D

Musikschrank 6063W/3D; Grundig Radio- (ID = 244083) Radio

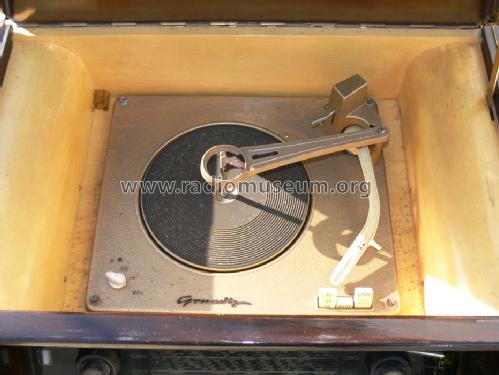

Musikschrank 6063W/3D; Grundig Radio- (ID = 1099681) Radio Musikschrank 6063W/3D; Grundig Radio- (ID = 1099682) Radio
Use red slider bar for more.
Musikschrank 6063W/3D; Grundig Radio- (ID = 1099681) Radio
Grundig Radio-: Musikschrank 6063W/3D [Radio] ID = 1099681 737x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank 6063W/3D, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM85 EL84
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Musikschrank 6063W/3D - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 620 x 830 x 410 mm / 24.4 x 32.7 x 16.1 inch
Price in first year of sale 698.00 DM

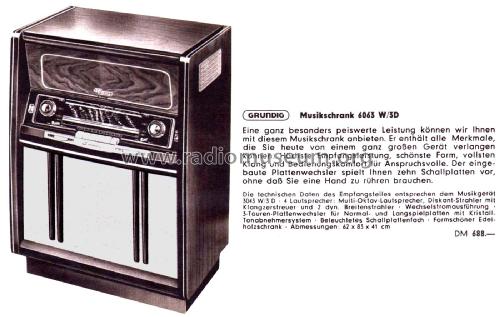

Mentioned in -- Original prospect or advert
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
