For model Musikschrank 6080WE, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL84 EM85
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.

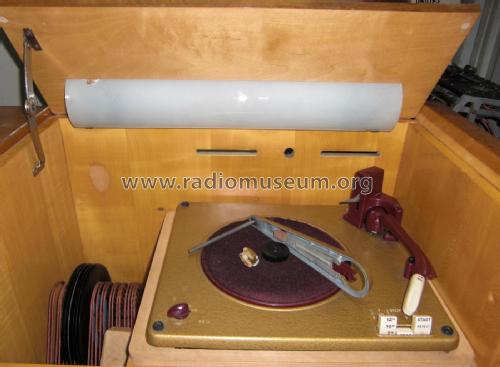

Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Musikschrank 6080WE - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1224 x 801 x 405 mm / 48.2 x 31.5 x 15.9 inch
Notes Grundig Musikschrank 6080 WE;
MW: 550 - 1.500 kHz,
SW1: 2.2 - 5.5 MHz,
SW2: 6.5 - 12.5 MHz,
SW3: 13.5 - 21.5 MHz,
Musikschrank für Export.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
