Musikschrank 7042W/3D Wechsler

Musikschrank 7042W/3D; Grundig Radio- (ID = 12477) Radio

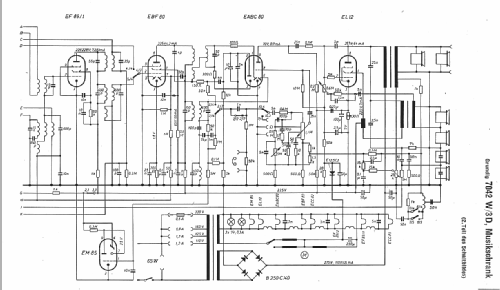

Musikschrank 7042W/3D; Grundig Radio- (ID = 12478) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 81387) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 375634) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 375635) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 81389) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 81391) Radio

Musikschrank 7042W/3D; Grundig Radio- (ID = 81393) Radio
Musikschrank 7042W/3D; Grundig Radio- (ID = 30256) Radio
Use red slider bar for more.
Musikschrank 7042W/3D; Grundig Radio- (ID = 30256) Radio
Grundig Radio-: Musikschrank 7042W/3D [Radio] ID = 30256 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikschrank 7042W/3D Wechsler, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Quelle ebay

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 EF89 EF89 ECC82 EM85 EBF80 EABC80 EL12
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker 6 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Musikschrank 7042W/3D [Wechsler] - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1208 x 811 x 451 mm / 47.6 x 31.9 x 17.8 inch
Notes Rundfunk-Chassis = 4040W/3D; Plattenwechsler.
Price in first year of sale 1'290.00 DM
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6078 models, 5301 with images and 4094 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Musikschrank 7042W/3D
Threads: 1 | Posts: 1
Hits: 1546     Replies: 0
grundig: 7042W/3D; Musikschrank
Hans M. Knoll
21.May.04
  1

Zur Erklaerung der Motorabstimmung, habe ich unter: http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=25496 Eine Beschreibung und Infos von Grundig eingestellt.

Hans M. knoll
