Musikschrank 7055W/3D/56
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103914
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Lange

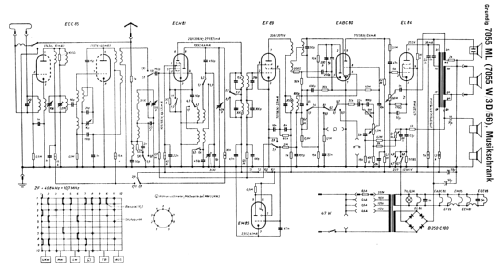

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musikschrank 7055W/3D/56 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Literature/Schematics (1)
- Lange, Schaltungen der Funkindustrie
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
