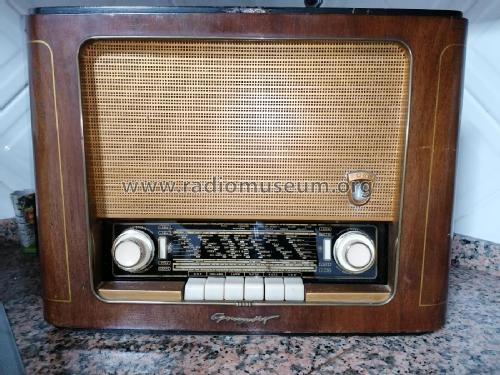

Phono-Kombination 2042W-Ph

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 144912
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Phono-Kombination 2042W-Ph - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 500 x 365 x 400 mm / 19.7 x 14.4 x 15.7 inch
  • Notes

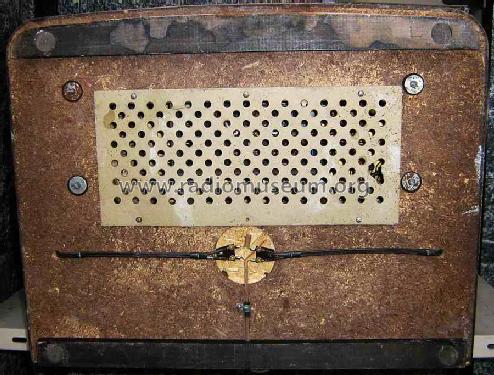

  • Phono-Kombination 2042W-Ph, Dual-Plattenspieler mit 33/45 und 78 Upm, UKW-Antenne in der Bodenplatte.
  • Net weight (2.2 lb = 1 kg)
  • 16.2 kg / 35 lb 10.9 oz (35.683 lb)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
