Röhrenvoltmeter RV56

Röhrenvoltmeter RV56; Grundig Radio- (ID = 2038996) Equipment

Röhrenvoltmeter RV56; Grundig Radio- (ID = 2038997) Equipment

Röhrenvoltmeter RV56; Grundig Radio- (ID = 2038994) Equipment

Röhrenvoltmeter RV56; Grundig Radio- (ID = 2038998) Equipment

Röhrenvoltmeter RV56; Grundig Radio- (ID = 2038999) Equipment
Röhrenvoltmeter RV56; Grundig Radio- (ID = 300599) Equipment Röhrenvoltmeter RV56; Grundig Radio- (ID = 1033882) Equipment

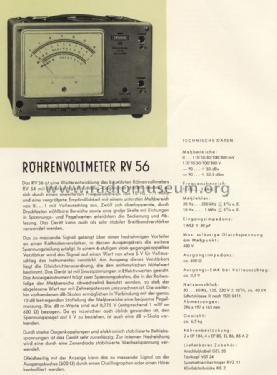

Röhrenvoltmeter RV56; Grundig Radio- (ID = 1279726) Equipment
Use red slider bar for more.
Röhrenvoltmeter RV56; Grundig Radio- (ID = 300599) Equipment
Grundig Radio-: Röhrenvoltmeter RV56 [Equipment] ID = 300599 884x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Röhrenvoltmeter RV56, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962 Category: Service- or Lab Equipment
Valves / Tubes 7: EF80 EF80 EF80 EF80 EF80 EF80 EL86 85A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Röhrenvoltmeter RV56 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 296 x 197 x 165 mm / 11.7 x 7.8 x 6.5 inch
Notes

Messbereiche:
U~ 1/3/10/30/100/300 mV und V; -90...+50 dBv; -90...+52,5 dBm; Ri 1,0 MOhm/30 pF;
Frequenzbereich: 10 Hz bis 1 MHz.
Wurde zusammen mit Sennheiser produziert.

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Collectors' prices
Mentioned in Funkschau 1962, Heft 12, S.322

Model page created by Felix Kreitlow. See "Data change" for further contributors.
