• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23551
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

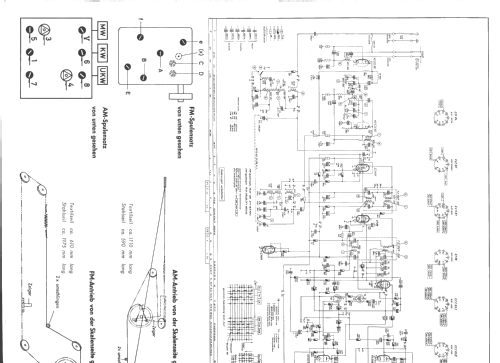

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 9 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SO123a [Nussbaum] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 850 x 830 x 390 mm / 33.5 x 32.7 x 15.4 inch
  • Notes
  •   Der Empfänger SO123a hat Eintakt- Endstufen für NF- Stereofonie mit einer Ausgangsleistung von 2 x 4,5 Watt.
  • Price in first year of sale
  • 787.00 DM
  • External source of data
  • Erb
