Majestic Stereo Console SO132Ua

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913901) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913902) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913903) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913904) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913905) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913906) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913907) Radio

Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913908) Radio
Use red slider bar for more.
Majestic Stereo Console SO132Ua; Grundig Radio- (ID = 913901) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: ECC85 ECH81 EF89 EABC80 EM84 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115/220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Majestic Stereo Console SO132Ua - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1100 x 760 x 410 mm / 43.3 x 29.9 x 16.1 inch
Notes This is a Stereo Console imported to the USA. Has 1 Selenium Rectifier. The record changer inside is model TW 504G.

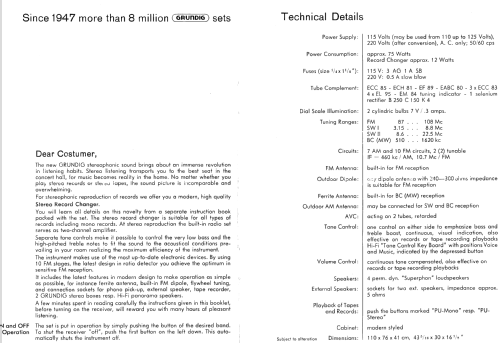

Source of data - - Manufacturers Literature

Model page created by John Kusching. See "Data change" for further contributors.
