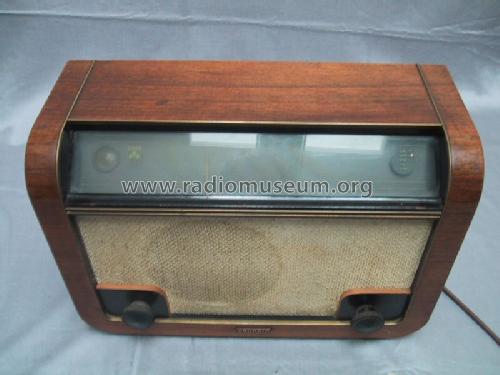

Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 29963) Radio Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 29961) Radio
Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 29962) Radio Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 45812) Radio

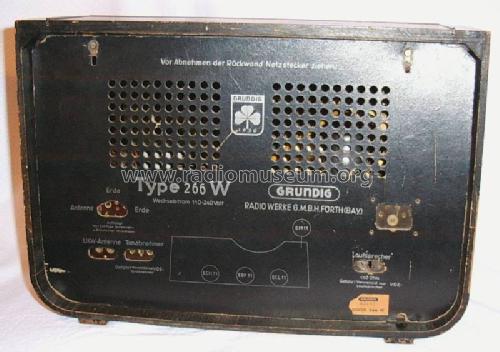

Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 398651) Radio Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 398653) Radio
Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 613282) Radio Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 1652177) Radio
Use red slider bar for more.

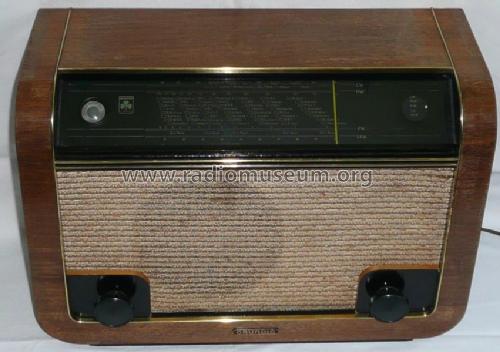

Kleeblatt-Serie 1950 Type 266W / Super 266W; Grundig Radio- (ID = 613281) Radio
Grundig Radio-: Kleeblatt-Serie 1950 Type 266W / Super 266W [Radio] ID = 613281 851x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kleeblatt-Serie 1950 Type 266W / Super 266W, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig Super 266W

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 EM11
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17.8 cm = 7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Kleeblatt-Serie 1950 Type 266W / Super 266W - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Dimensions (WHD) 450 x 312 x 190 mm / 17.7 x 12.3 x 7.5 inch
Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Funk-Technik (FT) (5013)
