T7007 H, M Ch= 061
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1970/1971
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 244194
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 12
- Semiconductors
- AF239 AF139 AF106 BF310 BF251 BF271 BF311 BF183 BF257 BF212 BF183 BC168 TAA640 V40C2 OA90 TD190 TD041 TV18
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T7007 H, M Ch= 061 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 490 x 390 mm / 26.4 x 19.3 x 15.4 inch
- Notes
-
VHF/UHF Allbereichtuner mit mechanischer Abstimmung und Bereichsumschaltung.
2 Gehäuseausführungen:
- T7007 H Kunststoff, hell mattiert, mit Bedienungsleiste in Holzlook
- T7007 M Kunststoff, hell mattiert, weiss oder rot, mit Bedienungsleiste in Metallfinish
Fernbedienung Fernregler Type II.
Chassisplatte 061.
- Net weight (2.2 lb = 1 kg)
- 23 kg / 50 lb 10.6 oz (50.661 lb)
- Mentioned in

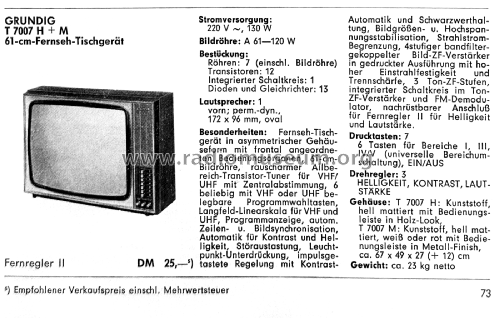

- Handbuch RFP 1970/71 S.73 (Thiele)
- Literature/Schematics (1)
- -- Original-techn. papers. (Grundig Service Unterlagen)
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
