Zauberspiegel 449M
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 100712
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

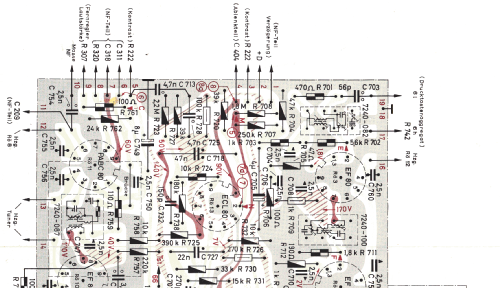

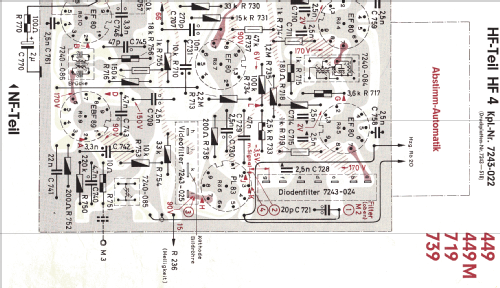

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Zauberspiegel 449M - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 610 x 530 x 500 mm / 24 x 20.9 x 19.7 inch
- Notes
- Technische Daten wie Zauberspiegel 449, jedoch Gehäuse Nußbaum natur mattiert oder Rüster mattiert. Die EF80 ist 6x im Gerät.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Price in first year of sale
- 1,015.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
