• Country
• Germany

• Manufacturer / Brand
• Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2293

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ACH1 AF3 AB2 AL4 AM2 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

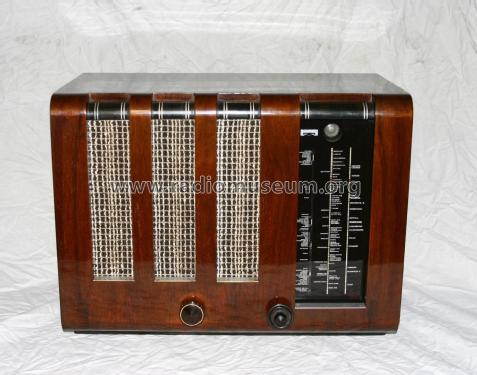

• Model: Nordmark 648KW - Hagenuk N&K, Hanseatische App.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 390 x 290 mm / 20.9 x 15.4 x 11.4 inch

• Notes
• Sch=Blaupunkt 4W77

• Price in first year of sale
• 289.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
