• Country
• Germany

• Manufacturer / Brand
• Hagenuk (N&K), Hanseatische App.bau-Ges., Neufeldt & Kuhnke, Nordmark

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2302

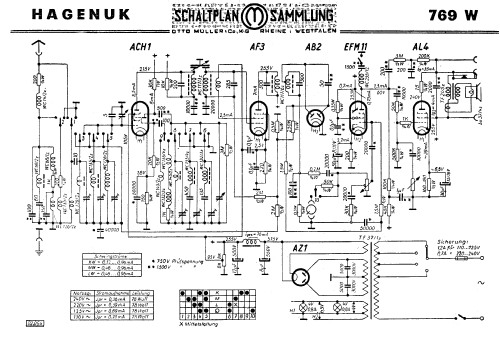

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ACH1 AF3 AB2 AL4 EFM11 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Nordmark 769W - Hagenuk N&K, Hanseatische App.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 545 x 393 x 292 mm / 21.5 x 15.5 x 11.5 inch

• Notes
• Sch=Blaupunkt 6W78

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Price in first year of sale
• 263.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
