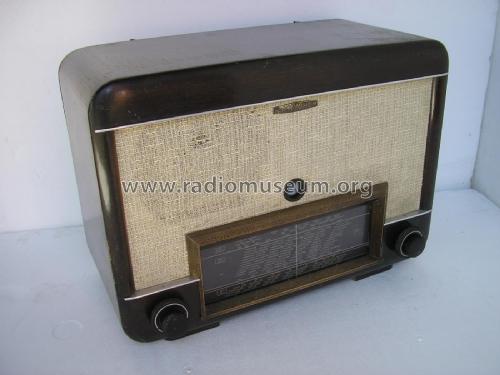

237A S; Horny Hornyphon; (ID = 2111756) Radio
Horny Hornyphon;: 237A S [Radio] ID = 2111756 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.

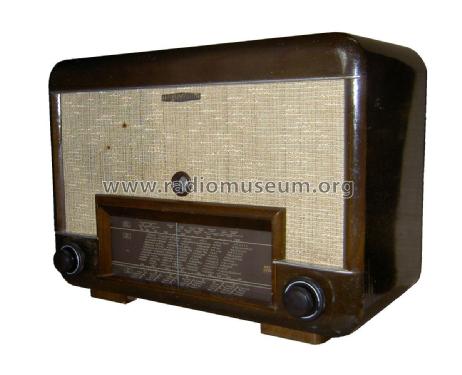

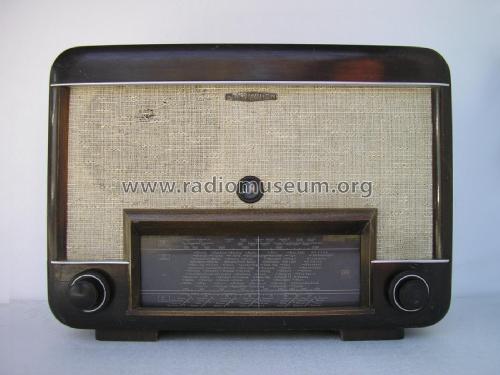

For model 237A S, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner

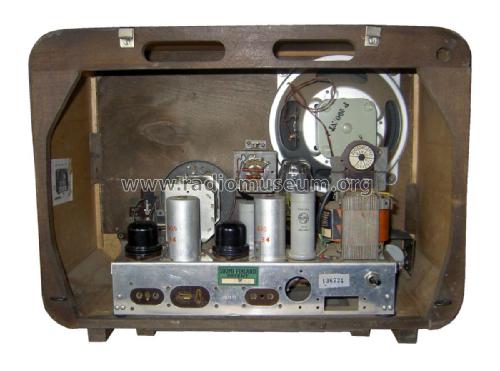

Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Super-Heterodyne (Super in general); Export model
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 237A S - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 351 x 229 mm / 18.9 x 13.8 x 9 inch
Notes

Dial lamps: 2x 6,3V / 0,3A

Export model for Finland and other Skandinavian countries. See also Horny W 237A.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
