W237A

W237A; Horny Hornyphon; (ID = 26242) Radio

W237A; Horny Hornyphon; (ID = 9476) Radio

W237A; Horny Hornyphon; (ID = 339686) Radio

W237A; Horny Hornyphon; (ID = 613635) Radio

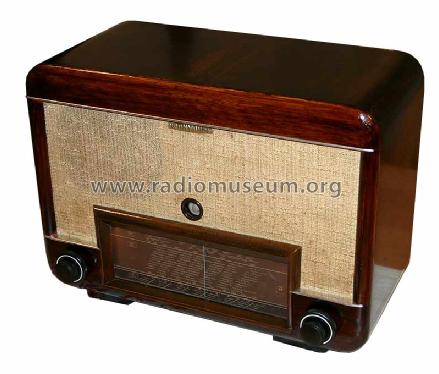

W237A; Horny Hornyphon; (ID = 1905777) Radio W237A; Horny Hornyphon; (ID = 1905778) Radio
W237A; Horny Hornyphon; (ID = 1905779) Radio W237A; Horny Hornyphon; (ID = 593528) Radio

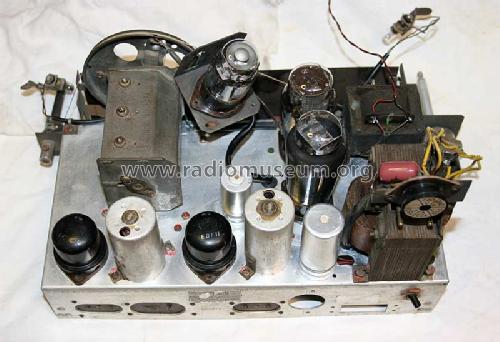

W237A; Horny Hornyphon; (ID = 2114981) Radio W237A; Horny Hornyphon; (ID = 2114982) Radio
W237A; Horny Hornyphon; (ID = 2114987) Radio
Use red slider bar for more.
W237A; Horny Hornyphon; (ID = 1905777) Radio
Horny Hornyphon;: W237A [Radio] ID = 1905777 800x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model W237A, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 125 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: W237A - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 350 x 230 mm / 18.9 x 13.8 x 9.1 inch
Notes

var.BBr.; Export Schweiz (Sch=Thali)

Siehe auch Exportmodell 237AS für Finnland und andere skandinavische Länder.

External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
