Olympic Automatic Console WK2331A /00 Ch= C7

Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 248248) TV Radio

Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 248249) TV Radio

Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 251509) TV Radio
Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 73491) TV Radio Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 49713) TV Radio
Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 40652) TV Radio
Use red slider bar for more.
Olympic Automatic Console WK2331A /00 Ch= C7; Horny Hornyphon; (ID = 73491) TV Radio

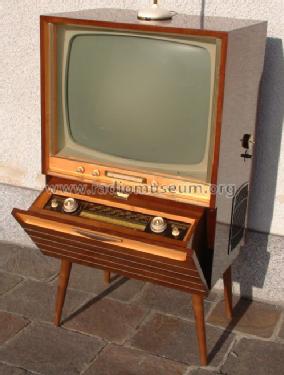

Horny Hornyphon;: Olympic Automatic Console WK2331A /00 Ch= C7 [TV Radio] ID = 73491 500x658
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympic Automatic Console WK2331A /00 Ch= C7, Horny (Hornyphon); Wien:
Hornyphon Console WK 2331A/00

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1960–1962 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 28: ECC85 ECH81 EF183 EABC80 EM84 EL84 EZ80 PCC88 PCF80 EF183 EF184 EF184 PCL84 PCF80 PCF80 PL84 PCL82 PCF80 ECH83 PCF80 PF86 PCL82 PCF80 ECC82 PL36 PY88 DY87 AW59-90
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Olympic Automatic Console WK2331A /00 Ch= C7 - Horny Hornyphon; Wien
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 600 x 1100 x 450 mm / 23.6 x 43.3 x 17.7 inch
Notes

Fernsehband VHF (I+III), UHF vorbereitet.

Radiochassis vom Horny W460A.

Price in first year of sale 7'370.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gerhard Heigl. See "Data change" for further contributors.
