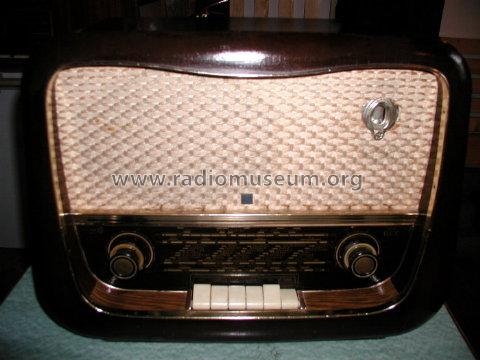

Rex UKW W664A/1; Horny Hornyphon; (ID = 294767) Radio Rex UKW W664A/1; Horny Hornyphon; (ID = 294769) Radio
Use red slider bar for more.
Rex UKW W664A/1; Horny Hornyphon; (ID = 609487) Radio
Horny Hornyphon;: Rex UKW W664A/1 [Radio] ID = 609487 900x694
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rex UKW W664A/1, Horny (Hornyphon); Wien:
eigene Sammlung

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 458,5/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Rex UKW W664A/1 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 380 x 240 mm / 19.7 x 15 x 9.4 inch
Notes

ähnlich wie Rex UKW W664A jedoch mit EF89

Parallelgerät zum Philips Präludio BA643A/1.

Net weight (2.2 lb = 1 kg) 9.9 kg / 21 lb 12.9 oz (21.806 lb)
Price in first year of sale 1'840.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
