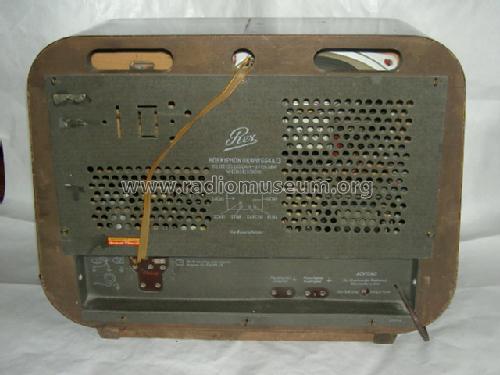

Rex UKW W664A /3 /4

Horny (Hornyphon); Wien

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 73479
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 459,5/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rex UKW W664A [/3 /4] - Horny Hornyphon; Wien
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 500 x 380 x 240 mm / 19.7 x 15 x 9.4 inch
  • Notes
  • ...A/3 und ...A/4 unterscheiden sich nur in der seitlichen Lautsprecherabdeckung.
    Parallelgerät zum Philips BA643A/3.
  • Price in first year of sale
  • 1,960.00 ATS
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
