Rialto W

Rialto W; Ingelen, (ID = 1300404) Radio

Rialto W; Ingelen, (ID = 1036628) Radio

Rialto W; Ingelen, (ID = 1300314) Radio

Rialto W; Ingelen, (ID = 1300315) Radio
Rialto W; Ingelen, (ID = 1669662) Radio Rialto W; Ingelen, (ID = 99300) Radio
Rialto W; Ingelen, (ID = 99304) Radio Rialto W; Ingelen, (ID = 99302) Radio

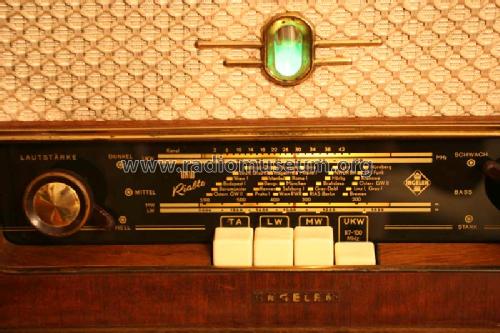

Rialto W; Ingelen, (ID = 871486) Radio Rialto W; Ingelen, (ID = 871576) Radio
Use red slider bar for more.
Rialto W; Ingelen, (ID = 1669662) Radio
Ingelen,: Rialto W [Radio] ID = 1669662 756x516
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rialto W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 ECC85 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Rialto W - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 250 x 210 mm / 16.5 x 9.8 x 8.3 inch
Notes 4 Tasten
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 436 models, 382 with images and 315 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
