• Country
• Germany

• Manufacturer / Brand
• Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15189

• • alternative name: Elektro-Apparate-Fabrik
  • Brand: EAF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 EC92 ECH81 EF85 EM11 EABC80 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

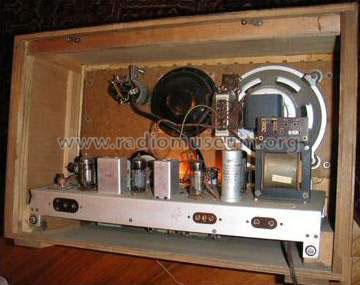

• Model: Mercedes 54 6984UW3RT - Jotha-Radio, El.-App.-Fabrik

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 345 x 250 mm / 20.5 x 13.6 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 295.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funk-Technik (FT) (Nr.17/1953 Seite 556)

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie (Band 6, Seite 46)
