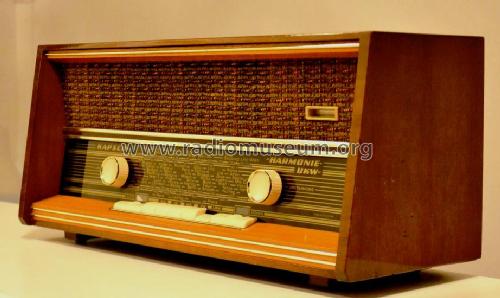

Harmonie UKW ; Kapsch & Söhne KS, (ID = 100868) Radio
Kapsch & Söhne KS,: Harmonie UKW [Radio] ID = 100868 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Harmonie UKW, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 480/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Harmonie UKW - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 230 x 200 mm / 20.5 x 9.1 x 7.9 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 1'995.00 ATS
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 124/2004, S.6, Kurzbeschreibung)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Klaus Ortwein. See "Data change" for further contributors.
