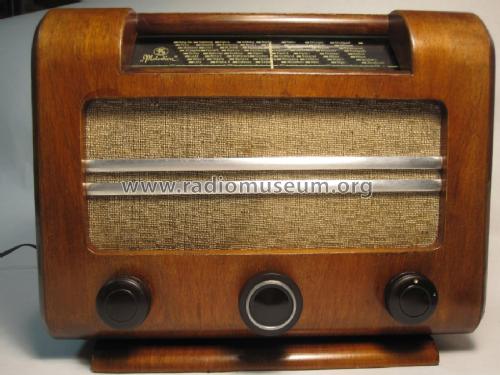

For model Melodion (U bzw. A) Front mit 2 vernickelten Stäben, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Melodion

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner

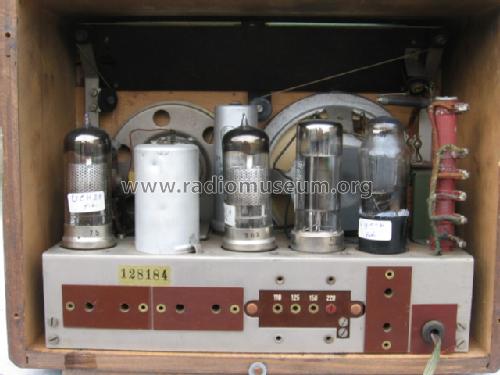

Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Semiconductors (the count is only for transistors) NTC-Resistor
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Melodion [Front mit 2 vernickelten Stäben] - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 290 x 220 x 160 mm / 11.4 x 8.7 x 6.3 inch
Notes

verchromte Stäbe - siehe auch Gehäusevariante mit Holzstäben.
Details in Museums-Bote 115 und ÖRA 1949-1 S87.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 990.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Radio-Mentor (4812)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Museums Bote, Österr. (Heft 115/2002, S.11, Gerätebeschreibung)
