• Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9542

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 480/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

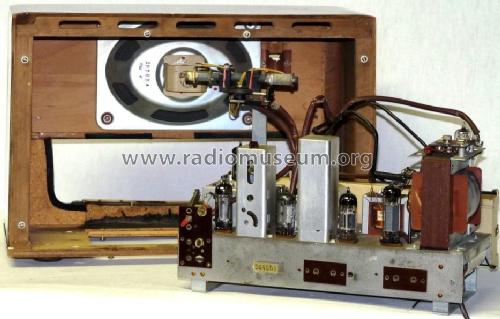

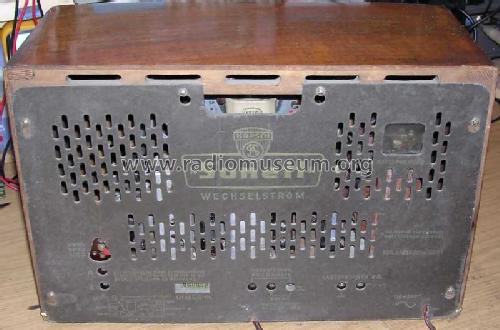

  • Model: Sonett Wechselstrom - Kapsch & Söhne KS, Telephon-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 305 x 225 mm / 17.3 x 12 x 8.9 inch
  • Notes
  • Gerät wurde hell und dunkel ausgeliefert
  • Price in first year of sale
  • 1,795.00 ATS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
