• Year
  • 1958
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 85595

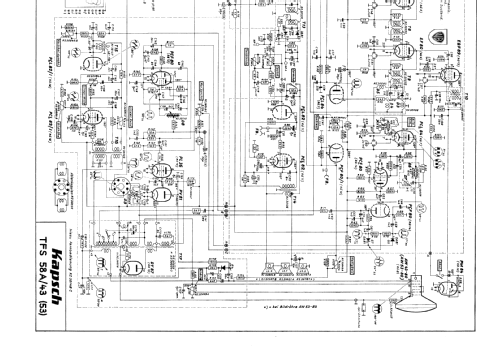

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TFS58A/43 - Kapsch & Söhne KS, Telephon-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 540 x 510 x 340 mm / 21.3 x 20.1 x 13.4 inch
  • Notes
  • Schlüsselschalter, Röhren teilweise mehrfach bestückt. Empfangsbereich VHF, Band I + III. UHF vorbereitet mit Taste. 3 Lautsprecher: 1 x oval 14 x 21 cm; 1 x oval 7,5 x 12,5 cm: 1 x 13 cm.
  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Price in first year of sale
  • 6,680.00 ATS
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
