Visor 43 (53)

Visor 43 ; Kapsch & Söhne KS, (ID = 111470) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 111471) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 111472) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 111473) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 111474) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 111475) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 703548) Television

Visor 43 ; Kapsch & Söhne KS, (ID = 703550) Television
Visor 43 ; Kapsch & Söhne KS, (ID = 809133) Television Visor 43 ; Kapsch & Söhne KS, (ID = 112271) Television
Visor 43 ; Kapsch & Söhne KS, (ID = 112272) Television
Use red slider bar for more.
Visor 43 ; Kapsch & Söhne KS, (ID = 809133) Television
Kapsch & Söhne KS,: Visor 43 [Television] ID = 809133 452x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Visor 43 (53), Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Detailbildausschnitt aus nachstehender Bilderserie, hochgeladen von Herrn Daniel Doll.

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: PCC88 PCF80 EF85 EF80 PCL84 PCL82 ECH81 ECC82 PL84 PL36 PY81 DY87 AW43-80 or AW53-88
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Visor 43 - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes 3xEF80, 4xPCF80, Empfangsbereich Band I - III, Kanal 2a - 12 . Die Ausführung mit 53-cm-Bildröhre kostete 6480.- öS.
Price in first year of sale 5'490.00 öS

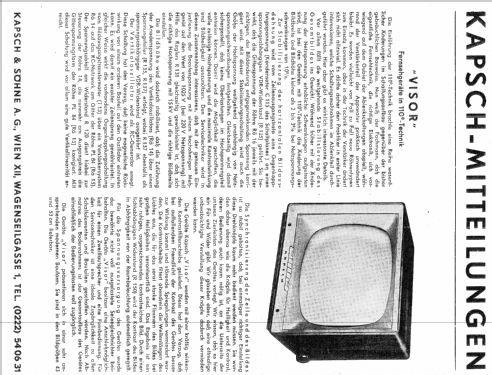

Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

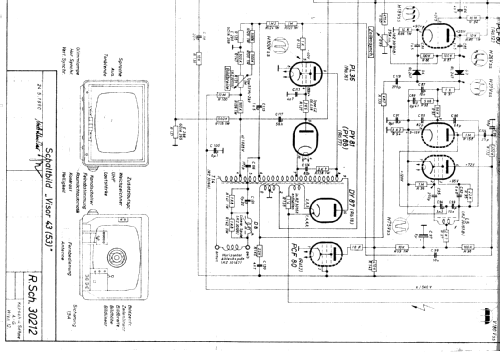

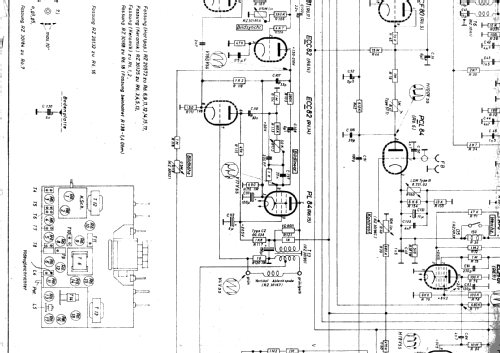

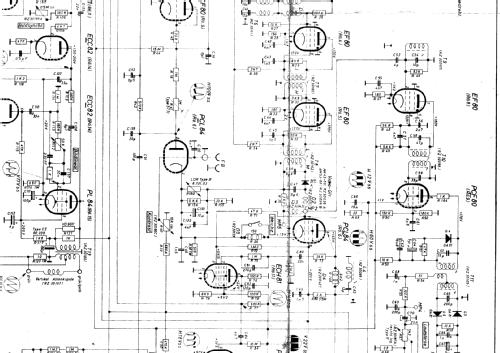

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
