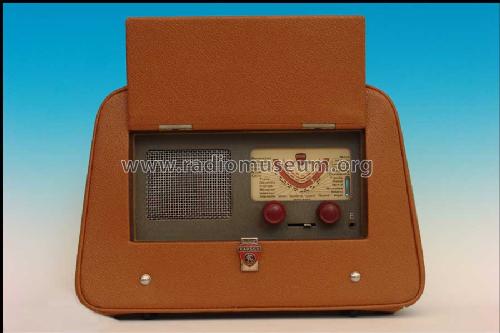

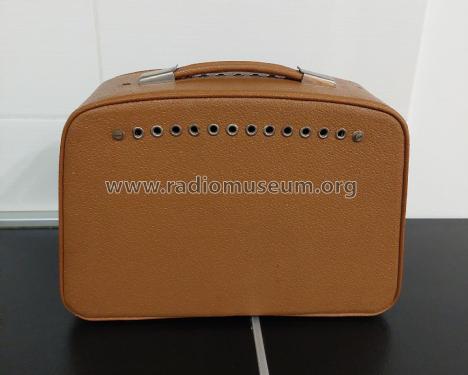

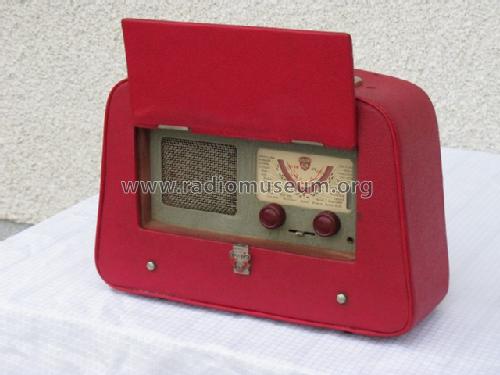

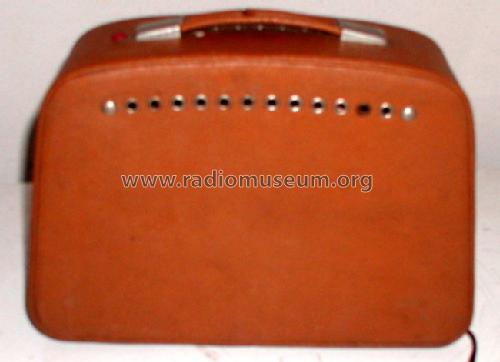

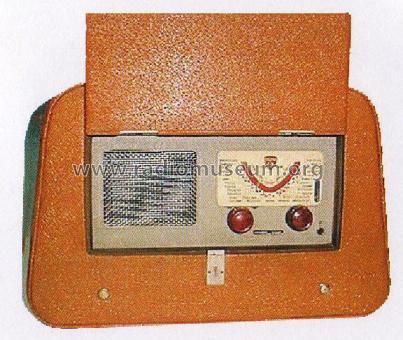

Kapsch & Söhne KS,: Weekend 3 ABC [Radio] ID = 35983 403x340
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend 3 ABC, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch ABC Weekend3

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner

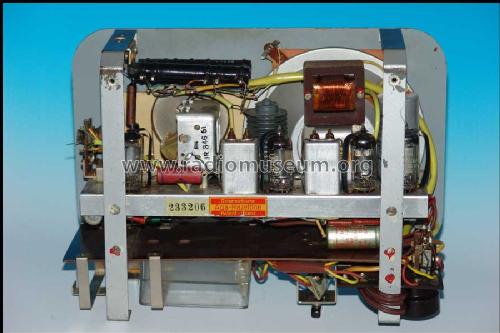

Valves / Tubes 5: DK92 DF91 DAF91 DL94 DM70
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)

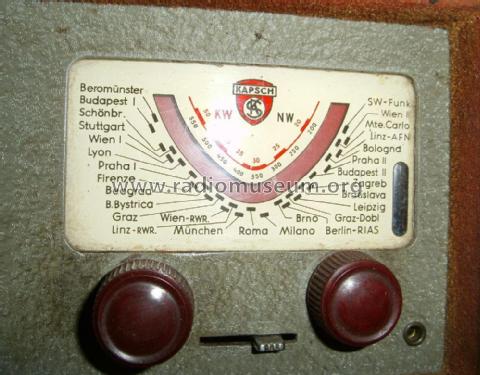

Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 110-220 / 67,5 & 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Weekend 3 ABC - Kapsch & Söhne KS, Telephon-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 230 x 120 mm / 12.2 x 9.1 x 4.7 inch
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 1'400.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radioschau Heft 3/1953
Literature/Schematics (1) Museums Bote, Österr. (Heft 119-120/2003, S.6, Kurzbeschreibung)


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Kapsch & Söhne KS,: Weekend 3 ABC
Threads: 1 | Posts: 1
Hits: 349     Replies: 0
kapsch: Weekend 3 ABC Dioden falsch gezeichnet
Karl Reiter
05.Jun.19
  1

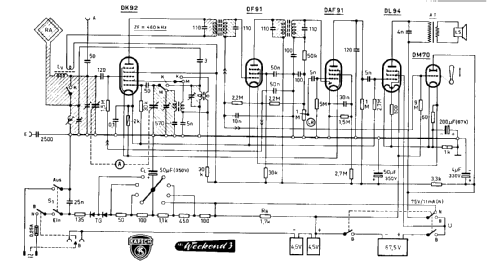

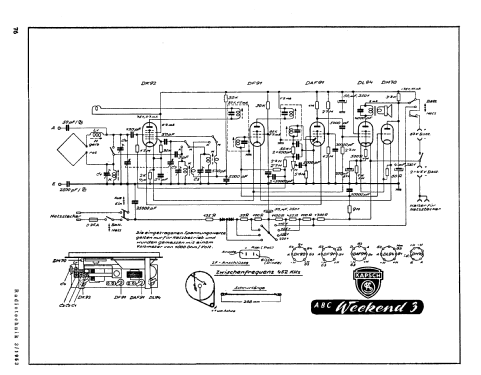

Im ersten Schaltbild  ( mit dem Kapsch-Logo) sind die beiden Dioden falsch herum eingezeichnet.. Im zweiten Schaltbild sind sie korrekt.
