Novum (38) GB2207GW

Novum GB2207GW; Körting-Radio; (ID = 4731) Radio

Novum GB2207GW; Körting-Radio; (ID = 14389) Radio

Novum GB2207GW; Körting-Radio; (ID = 14390) Radio

Novum GB2207GW; Körting-Radio; (ID = 609674) Radio

Novum GB2207GW; Körting-Radio; (ID = 1027526) Radio

Novum GB2207GW; Körting-Radio; (ID = 1916849) Radio

Novum GB2207GW; Körting-Radio; (ID = 1916878) Radio
Novum GB2207GW; Körting-Radio; (ID = 1380756) Radio Novum GB2207GW; Körting-Radio; (ID = 707558) Radio
Novum GB2207GW; Körting-Radio; (ID = 707573) Radio Novum GB2207GW; Körting-Radio; (ID = 323) Radio
Novum GB2207GW; Körting-Radio; (ID = 192920) Radio Novum GB2207GW; Körting-Radio; (ID = 1085559) Radio
Use red slider bar for more.
Novum GB2207GW; Körting-Radio; (ID = 1380756) Radio
Körting-Radio;: Novum GB2207GW [Radio] ID = 1380756 933x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Novum (38) GB2207GW, Körting-Radio; Leipzig, später Grassau:

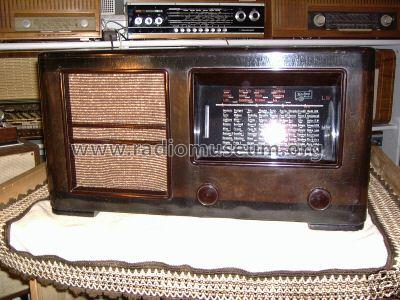

fotografiert in der Radiosammlung der 'GaraGe' im 'Automatik-Museum der HTWK Leipzig'

Country:  Germany
Manufacturer / Brand:  Körting-Radio; Leipzig, später Grassau
alternative name

Dietz & Ritter GmbH, Dr.
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF3 CB1 CL4 U1220/6 optional AZ1 RR145/S
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Novum GB2207GW - Körting-Radio; Leipzig, später
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 310 x 260 mm / 23.2 x 12.2 x 10.2 inch
Notes doppelte Reflexschaltung: 1. Reflexstufe NF über CF3, 2. Reflexstufe HF für Regelspannung über CL4; Feldstärkeanzeige über Glimmröhre "Amplimeter"; Rückkopplung über Trimmpoti an der Rückseite; Spartransformator, keine Netztrennung
Net weight (2.2 lb = 1 kg) 15.2 kg / 33 lb 7.7 oz (33.48 lb)
Price in first year of sale 213.00 RM
Collectors' prices
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

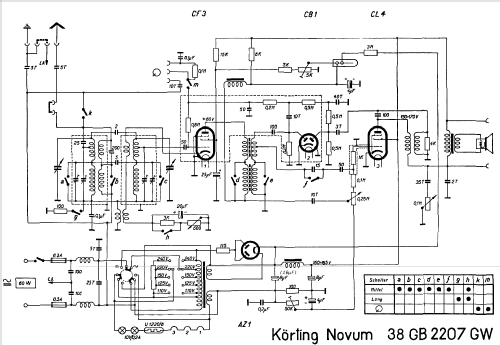

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (9181)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
