Stereo Dynamic 1070 Export
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112909
-
- alternative name: Dietz & Ritter GmbH, Dr.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz; Export model
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Dynamic 1070 [Export] - Körting-Radio; Leipzig, später
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Körting Stereo Dynamic 1070 is an export model with an FM coverage of 88 - 108 MHz. It has en English dial with German stations on it.
Two-channel (stereophonic) audio amplifier with switchable dynamic function.
Model has two magic eye tubes EM85: one acts as the loudness compensation amplifier and indicator for the left channel (dynamic on), the other is used for FM-AM tuning indicator or the loudness compensation amplifier and indicator for the right channel.
See also the German domestic model Dynamic 830W.
- Mentioned in

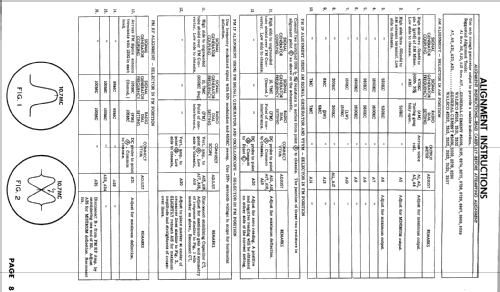

- Photofact Folder, Howard W. SAMS (Set 585 Folder7)
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
- Other Models
-
Here you find 814 models, 666 with images and 470 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Collections
The model Stereo Dynamic is part of the collections of the following members.
Forum contributions about this model: Körting-Radio;: Stereo Dynamic 1070
Threads: 2 | Posts: 2
Gentlemen,
The list grows longer. I discovered the two tone control flags that reside behind the dial glass are missing. I would like to aquire one each left and right. Are there any for sale, trade or begging?
If the flags are not available a photo would help a lot! I will make them out of hobby shop materials.
If a photo is not available a hand sketch would be better than what I have now. What I have now is nothing.
Perhaps a URL linking me to a picture of the domestic version of this unit with the flags shown.
Thanks again,
Paul Pinyot.
Paul E. Pinyot † 2013, 17.Feb.13
I am looking for an image of the knob graphics that is affixed to the side of the horizantal mounted balance knob just under the two eye tubes.
A picture or two would be helpful. If not picture a verbal description would help.
Thanks Paul.
Paul E. Pinyot † 2013, 13.Feb.13
