Ultramar Musikschrank 37
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230608
-
- alternative name: Dietz & Ritter GmbH, Dr.

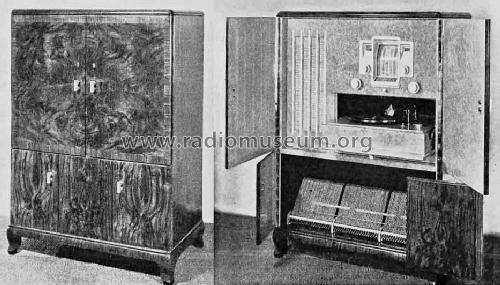

Prospektbild
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultramar Musikschrank 37 - Körting-Radio; Leipzig, später
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Schrankmodell mit herausziehbarem Plattenspieler, Unterteil als herausziehbarer Plattenhalter für 100 Platten.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
