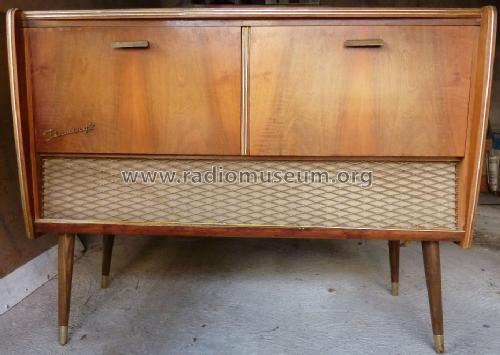

Musiktruhe K600 Fläming II (2)

Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 87497) Radio Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134865) Radio
Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134862) Radio Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134863) Radio
Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1393929) Radio Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134866) Radio
Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134864) Radio Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1134867) Radio
Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 1393921) Radio
Use red slider bar for more.
Musiktruhe K600 Fläming II ; Krechlok KG, W.; (ID = 87497) Radio
Krechlok KG, W.;: Musiktruhe K600 Fläming II [Radio] ID = 87497 854x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musiktruhe K600 Fläming II (2), Krechlok KG, W.; Luckenwalde (Ostd.)

Country:  Germany
Manufacturer / Brand:  Krechlok KG, W.; Luckenwalde (Ostd.)
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EABC80 EM80 ECC83 EL95 EL95 EZ80
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Musiktruhe K600 Fläming II - Krechlok KG, W.; Luckenwalde
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 1140 x 875 x 480 mm / 44.9 x 34.4 x 18.9 inch
Notes

Radio "Fidelio" aus Neustadt/Glewe,
Tonbandgerät wahlweise KB100 oder BG20/3 oder Mono-Plattenspieler,
2 Klapptüren.

Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
