• Country
• Germany

• Manufacturer / Brand
• Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk

• Year
• 1954/1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 73762

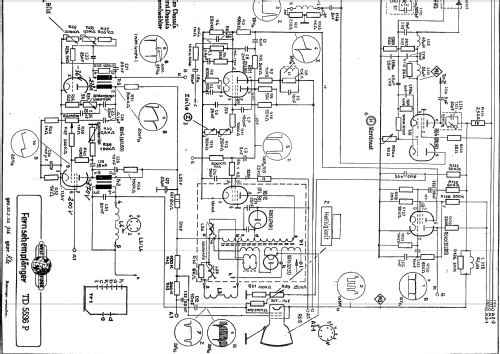

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• EC92 ECC81 EF80 EF80 EF80 PCL81 ECL80 EF80 PABC80 PL82 ECL80 PL81 PY81 EY51 ECL80 PY82 PY82 MW36-44

• Main principle
• Superhet with RF-stage; ZF/IF 25750 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Weltfunk TD5536P 88-00-3602 [PCL81] - Krefft AG, W.; Gevelsberg

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 415 x 485 x 435 mm / 16.3 x 19.1 x 17.1 inch

• Notes

• VHF Bereich. Videoendstufe mit PCL81.

  Siehe auch Krefft Weltfunk TD5536P mit PL83.

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• Price in first year of sale
• 698.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkschau (21/1954 S.442)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Lange, Schaltungen der Funkindustrie (Band VI, S.272 ff.)

• Author
• Model page created by Michael Niermann. See "Data change" for further contributors.
