FET 1021SL Ch= FS 1021SL

FET 1021SL Ch= FS 1021SL; Kuba Kuba-Imperial, (ID = 2497114) Television

FET 1021SL Ch= FS 1021SL; Kuba Kuba-Imperial, (ID = 2497115) Television

FET 1021SL Ch= FS 1021SL; Kuba Kuba-Imperial, (ID = 2497116) Television
FET 1021SL Ch= FS 1021SL; Kuba Kuba-Imperial, (ID = 1036469) Television
Use red slider bar for more.
FET 1021SL Ch= FS 1021SL; Kuba Kuba-Imperial, (ID = 1036469) Television
Kuba Kuba-Imperial,: FET 1021SL Ch= FS 1021SL [Television] ID = 1036469 900x879
Select picture or schematic to display from thumbnails on the right and click for download.
For model FET 1021SL Ch= FS 1021SL, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:

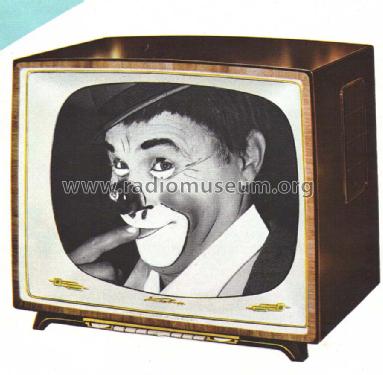

Bild aus Kuba-Prospekt Saison 1959-1960

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1959/1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: PCC88 PCF82 EF80 EF80 EF80 EF80 EF80 PL83 EF80 EF80 PABC80 PL84 PCF80 PCF82 PC92 ECH81 PCF80 PCL82 PL36 PY88 DY86 AW53-88
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: FET 1021SL Ch= FS 1021SL - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 490 x 380 mm / 23.2 x 19.3 x 15 inch
Notes

VHF; gegen Aufpreis mit UHF-Tuner lieferbar.
Chassis FS 1021SL mit motorisierter Kanalwählerautomatik.
Mehrpreis für Türen 40,- DM; für Türen und Beine 50,- DM.

Net weight (2.2 lb = 1 kg) 39 kg / 85 lb 14.4 oz (85.903 lb)
Price in first year of sale 1'048.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1959/60

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
