Tarantella I (1) Ch= Kuba 832

Tarantella I Ch= Kuba 832; Kuba Kuba-Imperial, (ID = 313161) Radio Tarantella I Ch= Kuba 832; Kuba Kuba-Imperial, (ID = 213536) Radio
Use red slider bar for more.
Tarantella I Ch= Kuba 832; Kuba Kuba-Imperial, (ID = 313161) Radio
Kuba Kuba-Imperial,: Tarantella I Ch= Kuba 832 [Radio] ID = 313161 545x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tarantella I (1) Ch= Kuba 832, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:

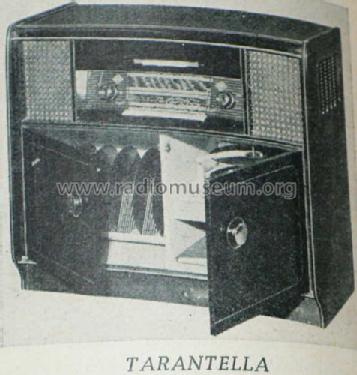

From a Portuguese Prospect.

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EABC80 EM85 EM85 EBC91 EL84 EL84 EZ81
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker 4 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Tarantella I Ch= Kuba 832 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 920 x 780 x 420 mm / 36.2 x 30.7 x 16.5 inch
Notes Rundfunk-Chassis = Kuba 832;
Phono-Chassis = Telefunken. Dynamic Expander (EBC91+EM85), RF-Chassis wie Körting 830 / Kuba 831.
Price in first year of sale 858.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
Here you find 728 models, 672 with images and 258 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
