• Country
• Sweden

• Manufacturer / Brand
• Kungs (Brand); Göteborg

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123639

• • alternative name: Kungsradio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECC81 EF85 EBF80 EM80 EABC80 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

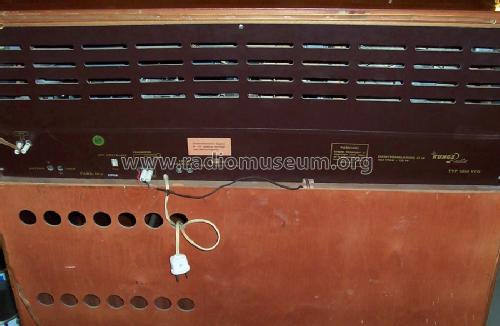

• Model: 1054VPG - Kungs Brand; Göteborg

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 960 x 990 x 410 mm / 37.8 x 39 x 16.1 inch

• Notes
• Silicon rectifier. Changer = Garrard RC 110. Shortwavebands: 13,5-20, 19-31, 30-51 and 60-180m.

• Source of data
• - - Data from my own collection
