Kardinal FM-AM 5611

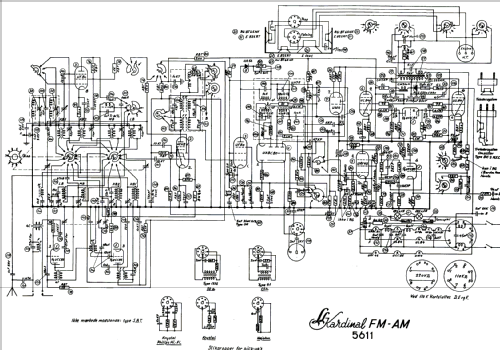

Kardinal FM-AM 5611; Linnet & Laursen LL (ID = 445087) Radio
Kardinal FM-AM 5611; Linnet & Laursen LL (ID = 148010) Radio Kardinal FM-AM 5611; Linnet & Laursen LL (ID = 148011) Radio

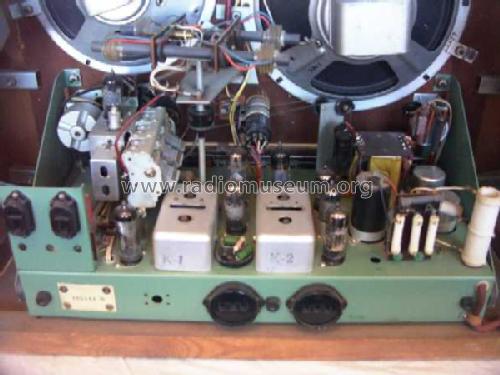

Kardinal FM-AM 5611; Linnet & Laursen LL (ID = 148012) Radio
Use red slider bar for more.

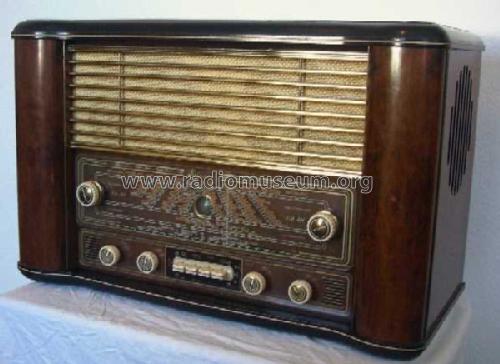

Kardinal FM-AM 5611; Linnet & Laursen LL (ID = 148010) Radio
Linnet & Laursen LL: Kardinal FM-AM 5611 [Radio] ID = 148010 600x437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kardinal FM-AM 5611, Linnet & Laursen (LL) A/S; København

Country:  Denmark
Manufacturer / Brand:  Linnet & Laursen (LL) A/S; København
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: UCC85 UF80 UCH81 UF80 UM4 UABC80 UAF42 UCC85 UL84 UL84
Semiconductors (the count is only for transistors) OA56
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Kardinal FM-AM 5611 - Linnet & Laursen LL A/S;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 680 x 430 x 310 mm / 26.8 x 16.9 x 12.2 inch
Notes

Schwungradantrieb. Drehbare Ferritantenne mit HF-Vorstufe. Gegentakt-Endstufe.

Tonabnehmer-Eingang durch steckbare Anpassungsnetzwerke oder Übertrager für Kristall- oder magnetische/dynamische Abtastsysteme (Pick-up) verwendbar.

Ähnlich wie Linnet Kardinal FM-AM 5612

Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Source of data -- Schematic

Model page created by Nico Pokrant. See "Data change" for further contributors.



All listed radios etc. from Linnet & Laursen (LL) A/S; København
Here you find 68 models, 63 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Linnet & Laursen LL: Kardinal FM-AM 5611
Threads: 1 | Posts: 5
Hits: 1908     Replies: 4
linnet: 5611; Kardinal
Ake Nyholm
18.Jul.06
  1 Somebody is looking for schematics of the Linet&Laursen model Kardinal 5611. I have schematics available for the model 5713, which seem to have similar tube line up.

Pls. inform if the 5713 is OK as replacement.
BR
Ake
Rolf Zetterberg
18.Jul.06
  2 Hello Åke
That would be me!Yes,I'm looking for the 5611 schematic.I have got a very special radio that probably is the only one that exists.It's a low,wide cabinet containing two 5611 chassis side by side.No loudspeakers,only the two chassis.I got them working by replacing a few caps.Rumour says that it was built by a Dane living here in Sweden to be able to receive early stereo transmissions!
Personally I'm very interested in everything about Linnet&Laursen,but if the schematics are the same,I'm not sure at this stage.Maybe we could have a private conversation about this?
Mvh
Rolf
Ake Nyholm
18.Jul.06
  3 Hej Rolf,

Ok, I shall arrange copies for you. Could you kindly send me an e-mail. Look at my profile for address.

MVH
Åke
Ake Nyholm
13.Oct.06
  4

Dear Rolf,

Look at model L.L. Kardinal 5713 to see if schematics are close enough with the model 5611.

Best regards

Ake

Rolf Zetterberg
16.Oct.06
  5 Hello Ake Sorry,but I haven't had any opportunity to answer earlier,since a lightning struck my telephone line and destroyed almost the whole PC.I have tried to replace some parts and it worked for a week or so,but now it has gone completely dead... I'm writing this(hopefully it works)on a borrowed homebrew PC with only a educational Linux CD as help,so I can't save or print or scan anything. Yes,it seems to be the correct chassis!I'll have a closer look when I can get hold of a normal PC! Thank you very much! Rolf

Linnet & Laursen LL: Kardinal FM-AM 5611
End of forum contributions about this model
