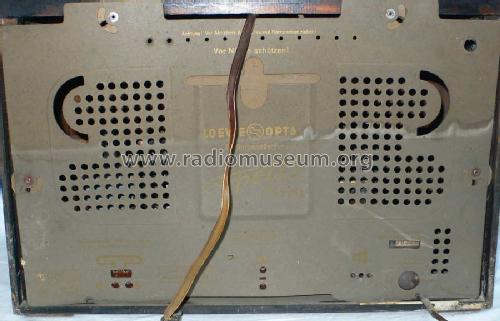

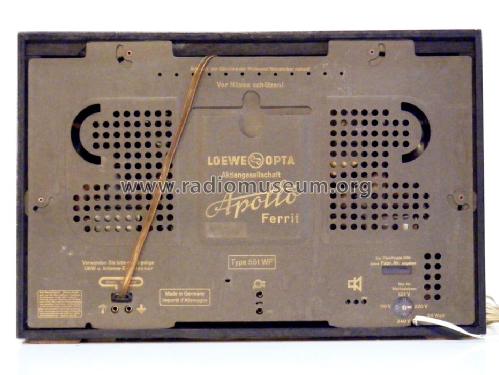

Apollo 551WF

Apollo 551WF; Loewe-Opta; (ID = 22350) Radio
Apollo 551WF; Loewe-Opta; (ID = 310202) Radio Apollo 551WF; Loewe-Opta; (ID = 310203) Radio
Apollo 551WF; Loewe-Opta; (ID = 310204) Radio Apollo 551WF; Loewe-Opta; (ID = 391) Radio
Apollo 551WF; Loewe-Opta; (ID = 691532) Radio Apollo 551WF; Loewe-Opta; (ID = 691534) Radio
Apollo 551WF; Loewe-Opta; (ID = 691537) Radio Apollo 551WF; Loewe-Opta; (ID = 691539) Radio
Apollo 551WF; Loewe-Opta; (ID = 691543) Radio Apollo 551WF; Loewe-Opta; (ID = 691544) Radio
Use red slider bar for more.
Apollo 551WF; Loewe-Opta; (ID = 310202) Radio
Loewe-Opta;: Apollo 551WF [Radio] ID = 310202 900x596
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo 551WF, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM34 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Apollo 551WF - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 360 x 280 mm / 21.7 x 14.2 x 11 inch
Notes drehbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 278.00 DM
Collectors' prices
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1563 models, 1291 with images and 1144 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
