Apollo Plastik 551P

Apollo Plastik 551P; Loewe-Opta; (ID = 22351) Radio
Apollo Plastik 551P; Loewe-Opta; (ID = 110922) Radio Apollo Plastik 551P; Loewe-Opta; (ID = 110928) Radio
Apollo Plastik 551P; Loewe-Opta; (ID = 110929) Radio Apollo Plastik 551P; Loewe-Opta; (ID = 141004) Radio
Apollo Plastik 551P; Loewe-Opta; (ID = 141007) Radio Apollo Plastik 551P; Loewe-Opta; (ID = 141012) Radio
Apollo Plastik 551P; Loewe-Opta; (ID = 141017) Radio Apollo Plastik 551P; Loewe-Opta; (ID = 141021) Radio
Use red slider bar for more.

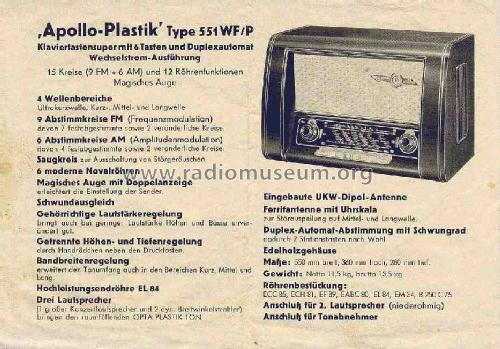

Apollo Plastik 551P; Loewe-Opta; (ID = 110922) Radio
Loewe-Opta;: Apollo Plastik 551P [Radio] ID = 110922 933x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo Plastik 551P, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM34 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Apollo Plastik 551P - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 360 x 280 mm / 21.7 x 14.2 x 11 inch
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 299.00 DM
Collectors' prices
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
