Atlanta 4891T/W

Atlanta 4891T/W; Loewe-Opta; (ID = 621743) Radio

Atlanta 4891T/W; Loewe-Opta; (ID = 621744) Radio
Atlanta 4891T/W; Loewe-Opta; (ID = 374588) Radio
Use red slider bar for more.
Atlanta 4891T/W; Loewe-Opta; (ID = 374588) Radio
Loewe-Opta;: Atlanta 4891T/W [Radio] ID = 374588 650x444
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlanta 4891T/W, Loewe-(Opta); Deutschland:
Handbuch des Rundfunks 1959

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EABC80 EM84 EAA91 ECC83 EL84 EL84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 6 Loudspeakers
Power out
from Radiomuseum.org Model: Atlanta 4891T/W - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1380 x 840 x 435 mm / 54.3 x 33.1 x 17.1 inch
Notes Diode: OA200.
Net weight (2.2 lb = 1 kg) 46 kg / 101 lb 5.1 oz (101.322 lb)
Price in first year of sale 998.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1564 models, 1291 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Loewe-Opta;: Atlanta 4891T/W
Threads: 1 | Posts: 1
Hits: 2220     Replies: 0
loewe-opta: 4891T/W; Atlanta
Mario Klok
30.Jan.04
  1

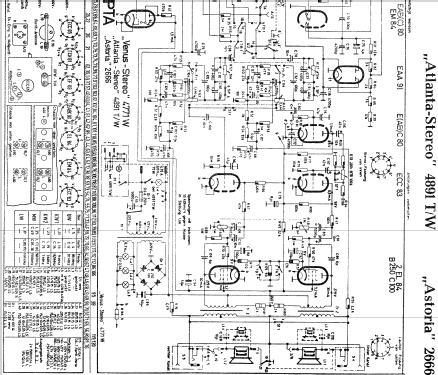

Für Schaltplan Musiktruhe  Loewe Opta Atlanta 4891 T/W bitte siehe Radiogerät Loewe Opta

Venus Stereo 4771. (Ist absolut identisch)
