Bella 42 011

Bella 42 011; Loewe-Opta; (ID = 24477) Radio

Bella 42 011; Loewe-Opta; (ID = 24479) Radio

Bella 42 011; Loewe-Opta; (ID = 24478) Radio
Bella 42 011; Loewe-Opta; (ID = 254129) Radio Bella 42 011; Loewe-Opta; (ID = 254130) Radio

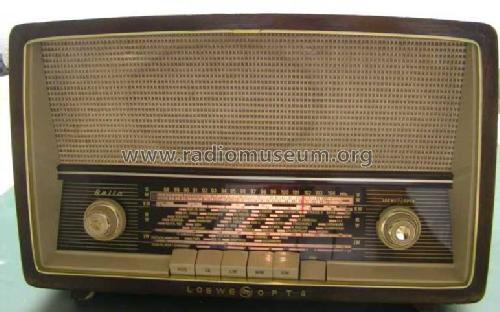

Bella 42 011; Loewe-Opta; (ID = 869844) Radio Bella 42 011; Loewe-Opta; (ID = 869845) Radio
Bella 42 011; Loewe-Opta; (ID = 1064406) Radio Bella 42 011; Loewe-Opta; (ID = 1064407) Radio
Bella 42 011; Loewe-Opta; (ID = 1064409) Radio Bella 42 011; Loewe-Opta; (ID = 1064410) Radio
Bella 42 011; Loewe-Opta; (ID = 1064411) Radio Bella 42 011; Loewe-Opta; (ID = 1064412) Radio
Use red slider bar for more.
Bella 42 011; Loewe-Opta; (ID = 254129) Radio
Loewe-Opta;: Bella 42 011 [Radio] ID = 254129 912x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella 42 011, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Bella 42 011 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 225 x 170 mm / 14.2 x 8.9 x 6.7 inch
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 269.00 DM
Source of data Handbuch VDRG 1963/1964


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Loewe-Opta;: Bella 42 011
Threads: 1 | Posts: 1
Hits: 1434     Replies: 0
loewe-opta: 42 011; Bella
Franz Ölzant
26.Jun.08
  1 Reparaturbericht:
Skalenlampe leuchtet, beim Durchstimmen hört man die starken Sender sehr leise und klirrend. Beim Ausbau zeigt sich, daß der "Ton" von der Endstufe kommt und am Ausgangstrafo primärseitig sieht man Funkenüberschläge. Der Lautsprecher ist stumm. Er hatte eine Unterbrechung der Schwingspule.

Loewe-Opta;: Bella 42 011
