Bella-Luxus 4714W

Bella-Luxus 4714W; Loewe-Opta; (ID = 33026) Radio

Bella-Luxus 4714W; Loewe-Opta; (ID = 33027) Radio
Bella-Luxus 4714W; Loewe-Opta; (ID = 2490557) Radio Bella-Luxus 4714W; Loewe-Opta; (ID = 2490559) Radio
Bella-Luxus 4714W; Loewe-Opta; (ID = 2490566) Radio Bella-Luxus 4714W; Loewe-Opta; (ID = 2490558) Radio
Bella-Luxus 4714W; Loewe-Opta; (ID = 2490549) Radio Bella-Luxus 4714W; Loewe-Opta; (ID = 2490560) Radio
Bella-Luxus 4714W; Loewe-Opta; (ID = 2490563) Radio Bella-Luxus 4714W; Loewe-Opta; (ID = 2490565) Radio
Bella-Luxus 4714W; Loewe-Opta; (ID = 28564) Radio Bella-Luxus 4714W; Loewe-Opta; (ID = 457387) Radio
Use red slider bar for more.
Bella-Luxus 4714W; Loewe-Opta; (ID = 2490557) Radio
Loewe-Opta;: Bella-Luxus 4714W [Radio] ID = 2490557 1400x1251

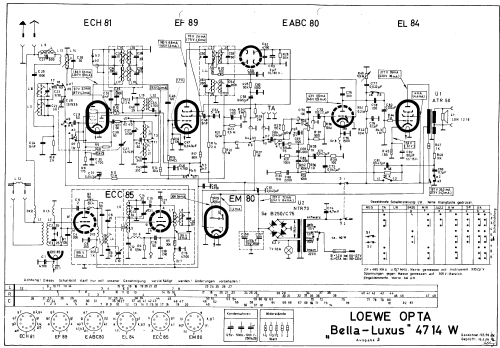

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bella-Luxus 4714W, Loewe-(Opta); Deutschland:
Il mobile in legno, non il fronte, è stato sverniciato totalmente e trattato con cera d'api colore neutro

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bella-Luxus 4714W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 375 x 260 x 215 mm / 14.8 x 10.2 x 8.5 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 249.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60
