For model Hellas 552W EM34, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner

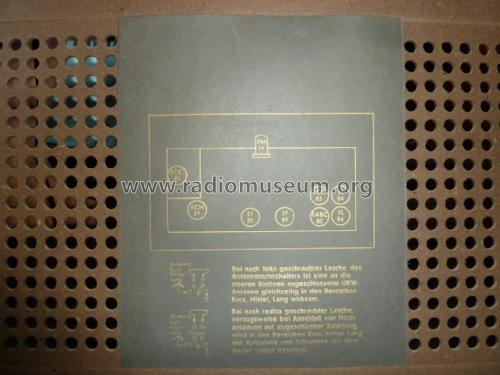

Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM34 EABC80 ECC83 EL84 EL84
Semiconductors (the count is only for transistors) E250C120
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 10 W (12 W max.)
from Radiomuseum.org Model: Hellas 552W [EM34] - Loewe-Opta; Deutschland
Material Wooden case

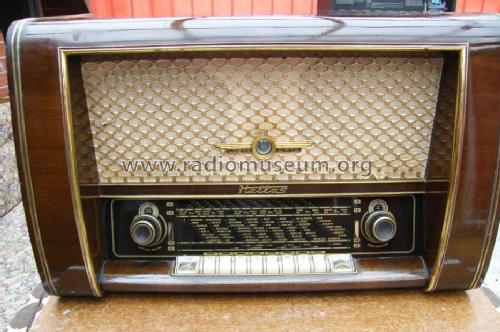

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 400 x 315 mm / 25.2 x 15.7 x 12.4 inch
Notes

variable Bandbreite; FS-Ton; andere Röhren ab App.-Nr. 63000. KW - Lupe. Anschluss für Fernbedienung. Ferritantenne drehbar.

Das Gerät hat 2 dynamische Ovallautsprecher als Tief- und Mitteltöner und einen elektrostatischen Hochtöner.



Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Price in first year of sale 398.00 DM
External source of data Ernst Erb, HB9RXQ
Source of data Rundfunk- und Fernseh-Katalog 1954/55
Mentioned in HdB d.Rdf-& Ferns-GrH 1954/55
Literature/Schematics (1) Katalog Rundfunk-Phono-Fernsehen 1954/55, Thiele Helmstedt
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
