Kora 2924T Nussbaum

Kora 2924T; Loewe-Opta; (ID = 308933) Radio

Kora 2924T; Loewe-Opta; (ID = 308934) Radio

Kora 2924T; Loewe-Opta; (ID = 308935) Radio
Kora 2924T; Loewe-Opta; (ID = 316300) Radio Kora 2924T; Loewe-Opta; (ID = 1218407) Radio
Kora 2924T; Loewe-Opta; (ID = 1218408) Radio Kora 2924T; Loewe-Opta; (ID = 1218409) Radio
Kora 2924T; Loewe-Opta; (ID = 1218410) Radio Kora 2924T; Loewe-Opta; (ID = 1218411) Radio
Kora 2924T; Loewe-Opta; (ID = 1218412) Radio Kora 2924T; Loewe-Opta; (ID = 1218413) Radio
Kora 2924T; Loewe-Opta; (ID = 2225091) Radio
Use red slider bar for more.
Kora 2924T; Loewe-Opta; (ID = 316300) Radio
Loewe-Opta;: Kora 2924T [Radio] ID = 316300 364x267
Select picture or schematic to display from thumbnails on the right and click for download.

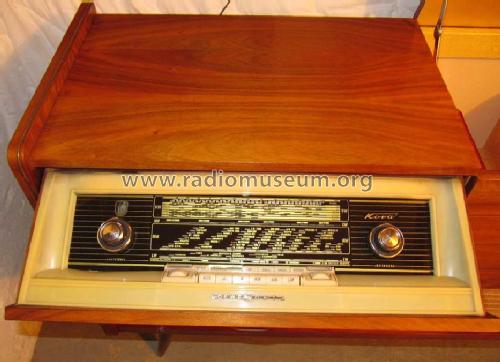

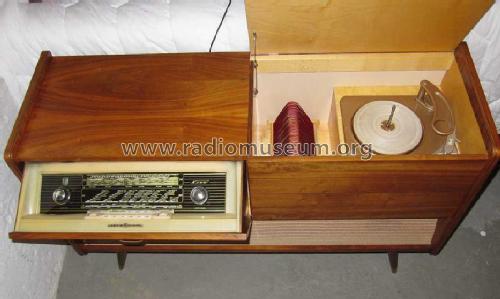

For model Kora 2924T Nussbaum, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EABC80 EM80 EC92 EL84 EL84
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Kora 2924T [Nussbaum] - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1250 x 820 x 430 mm / 49.2 x 32.3 x 16.9 inch
Notes Phono-Chassis = Dual 1004.
Net weight (2.2 lb = 1 kg) 46 kg / 101 lb 5.1 oz (101.322 lb)
Price in first year of sale 848.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1566 models, 1294 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
