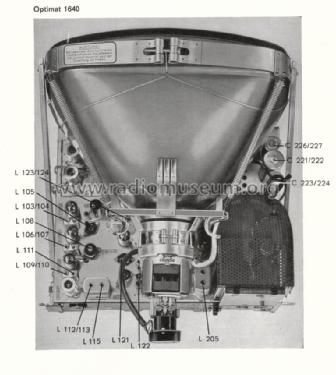

Optimat 1640

Optimat 1640; Loewe-Opta; (ID = 17428) TV Radio

Optimat 1640; Loewe-Opta; (ID = 17429) TV Radio

Optimat 1640; Loewe-Opta; (ID = 17430) TV Radio

Optimat 1640; Loewe-Opta; (ID = 687650) TV Radio

Optimat 1640; Loewe-Opta; (ID = 687651) TV Radio
Optimat 1640; Loewe-Opta; (ID = 2215626) TV Radio Optimat 1640; Loewe-Opta; (ID = 2215627) TV Radio
Optimat 1640; Loewe-Opta; (ID = 2215742) TV Radio Optimat 1640; Loewe-Opta; (ID = 2215628) TV Radio
Optimat 1640; Loewe-Opta; (ID = 2215630) TV Radio Optimat 1640; Loewe-Opta; (ID = 291797) TV Radio
Optimat 1640; Loewe-Opta; (ID = 291798) TV Radio Optimat 1640; Loewe-Opta; (ID = 687652) TV Radio
Use red slider bar for more.
Optimat 1640; Loewe-Opta; (ID = 2215626) TV Radio
Loewe-Opta;: Optimat 1640 [TV Radio] ID = 2215626 933x801
Select picture or schematic to display from thumbnails on the right and click for download.
For model Optimat 1640, Loewe-(Opta); Deutschland:
Q: Loewe-Opta, Produkt-Katalog '57

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1956/1957 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes ECC85 ECH81 EF85 EABC80 EM80 EL84
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Optimat 1640 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1130 x 890 x 540 mm / 44.5 x 35 x 21.3 inch
Notes

Fernseh-Chassis = Stadion 1634;
Rundfunk-Chassis = Meteor 1781;
Phono-Chassis = Dual 1003;
Anschluss für Kabelfernbedienung FB II (2) - (Lautstärke, Helligkeit und Kontrast).

Net weight (2.2 lb = 1 kg) 74 kg / 162 lb 15.9 oz (162.996 lb)
Price in first year of sale 1'898.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1583 models, 1310 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
