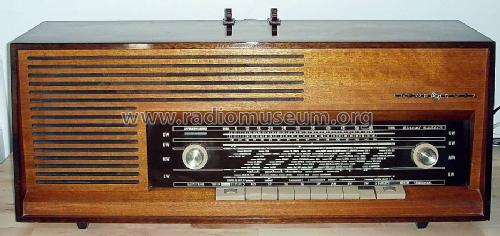

Planet modern 42 026

Loewe-(Opta); Deutschland

  • Year
  • 1963–1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 25665
    • alternative name: Löwe Radio

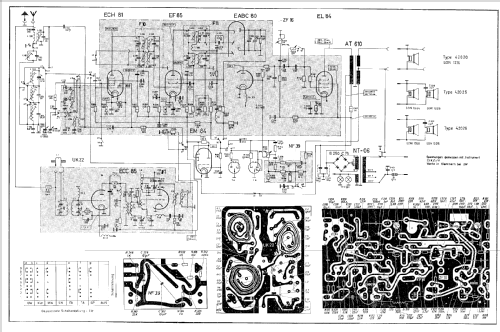

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Planet modern 42 026 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 640 x 255 x 210 mm / 25.2 x 10 x 8.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 8.6 kg / 18 lb 15.1 oz (18.943 lb)
  • Price in first year of sale
  • 379.00 DM
  • External source of data
  • Erb
