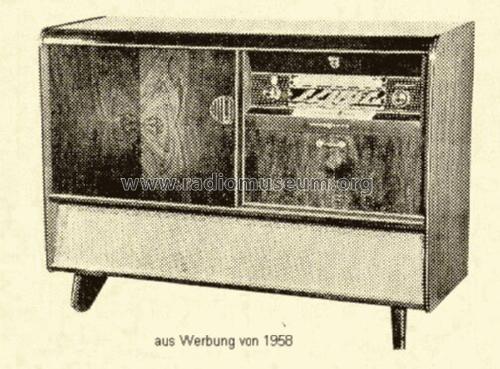

Rheingold 3970T/W
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21885
-
- alternative name: Löwe Radio
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 160; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rheingold 3970T/W - Loewe-Opta; Deutschland
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1170 x 870 x 440 mm / 46.1 x 34.3 x 17.3 inch
- Notes
-
Tonband-Chassis (Mehrpreis 429,- DM) = Optacord 400.
Loewe Rheingold 3970T/W hat eine Mono-Gegentakt-Endstufe.
Siehe auch Rheingold Stereo 3970 St mit 2 Eintakt-Endstufen.
- Net weight (2.2 lb = 1 kg)
- 50 kg / 110 lb 2.1 oz (110.132 lb)
- Price in first year of sale
- 778.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
