Trianon-Stereo 2686

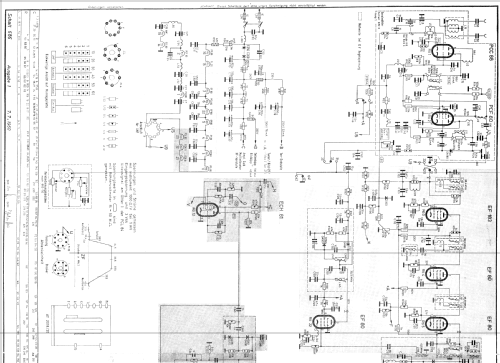

Trianon-Stereo 2686; Loewe-Opta; (ID = 2502188) TV Radio

Trianon-Stereo 2686; Loewe-Opta; (ID = 2502189) TV Radio

Trianon-Stereo 2686; Loewe-Opta; (ID = 2501253) TV Radio
Trianon-Stereo 2686; Loewe-Opta; (ID = 1039938) TV Radio Trianon-Stereo 2686; Loewe-Opta; (ID = 1039939) TV Radio
Trianon-Stereo 2686; Loewe-Opta; (ID = 1039940) TV Radio Trianon-Stereo 2686; Loewe-Opta; (ID = 1165005) TV Radio
Use red slider bar for more.
Trianon-Stereo 2686; Loewe-Opta; (ID = 1039938) TV Radio
Loewe-Opta;: Trianon-Stereo 2686 [TV Radio] ID = 1039938 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trianon-Stereo 2686, Loewe-(Opta); Deutschland:
D Loewe/Opta Trianon 2686 Frontansicht Truhe geschlossen

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960/1961 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 27: ECC85 ECH81 EBF89 EF86 EM84 EF86 EL84 EL84 PC86 PCC88 PCF80 EF183 EF80 PCL84 PCL86 ECH81 PCL82 ECC82 PL36 PY88 DY86 AW59-90
Semiconductors (the count is only for transistors) OA180 OA160 OA172 OA161 M3 E250C350
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details Changer (Record changer); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Trianon-Stereo 2686 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1180 x 930 x 490 mm / 46.5 x 36.6 x 19.3 inch
Notes

4 Ovallautsprecher: 2 St. 15 x 26 cm und 2 St. 7 x 13 cm.
Fernbedienung = FB IV
Phonochassis = PE66

Siehe auch Tischgerät Optalux 686.

Röhren FS-Teil incl. UHF-Tuner und Dioden einmal je Type gelistet.

Mentioned in -- Original-techn. papers.

Model page created by Bernd Schmitz. See "Data change" for further contributors.
