Truxa 3731W

Truxa 3731W; Loewe-Opta; (ID = 257663) Radio

Truxa 3731W; Loewe-Opta; (ID = 1082587) Radio
Truxa 3731W; Loewe-Opta; (ID = 32658) Radio Truxa 3731W; Loewe-Opta; (ID = 12021) Radio
Truxa 3731W; Loewe-Opta; (ID = 12022) Radio Truxa 3731W; Loewe-Opta; (ID = 12019) Radio
Truxa 3731W; Loewe-Opta; (ID = 115546) Radio Truxa 3731W; Loewe-Opta; (ID = 645183) Radio
Truxa 3731W; Loewe-Opta; (ID = 700341) Radio Truxa 3731W; Loewe-Opta; (ID = 714198) Radio
Truxa 3731W; Loewe-Opta; (ID = 1175706) Radio Truxa 3731W; Loewe-Opta; (ID = 1175708) Radio
Use red slider bar for more.
Truxa 3731W; Loewe-Opta; (ID = 32658) Radio
Loewe-Opta;: Truxa 3731W [Radio] ID = 32658 933x699

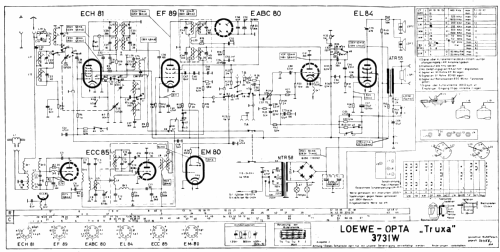

Select picture or schematic to display from thumbnails on the right and click for download.
For model Truxa 3731W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Truxa 3731W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 585 x 320 x 225 mm / 23 x 12.6 x 8.9 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 299.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1564 models, 1292 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
