Luxorett 3401W Ch= 5707

Luxorett 3401W Ch= 5707; Luxor, Helsinki - (ID = 156975) Radio
Use red slider bar for more.
Luxorett 3401W Ch= 5707; Luxor, Helsinki - (ID = 156975) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Finland
Manufacturer / Brand:  Luxor, Helsinki - see also Sweden
alternative name

Iskumetalli Oy
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 EF80 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 462 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Luxorett 3401W Ch= 5707 - Luxor, Helsinki - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Foster-Seeley FM diskriminator.
Same chassis was used in Senator 3402W, Condorita 340W and Dirigent 3304W.
Source of data -- Collector info (Sammler)

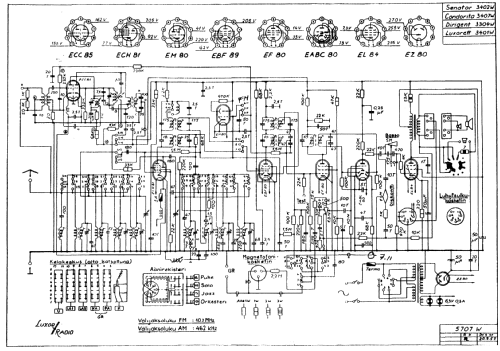

Literature/Schematics (1) -- Schematic

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
