Bi-Ampli MD3527A/16

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 167712) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 167713) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 167715) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380991) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380992) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380993) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380994) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380995) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380996) Radio

Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 2380997) Radio
Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 133167) Radio Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 133169) Radio
Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 133170) Radio Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 793880) Radio
Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 793881) Radio Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 793883) Radio
Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 793884) Radio
Use red slider bar for more.
Bi-Ampli MD3527A/16; Mediator; La Chaux- (ID = 133167) Radio
Mediator; La Chaux-: Bi-Ampli MD3527A/16 [Radio] ID = 133167 600x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bi-Ampli MD3527A/16, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF80 EM80 EABC80 EL84 EL84 UL41 UL41
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Bi-Ampli MD3527A/16 - Mediator; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 680 x 413 x 255 mm / 26.8 x 16.3 x 10 inch
Notes Bi - Ampli, d.h. separate übertragerlose Endstufen für Höhen und Tiefen.
Net weight (2.2 lb = 1 kg) 13.6 kg / 29 lb 15.3 oz (29.956 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

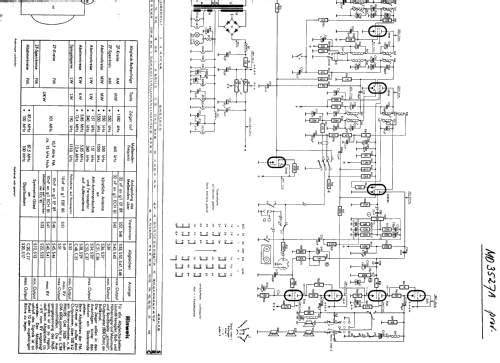

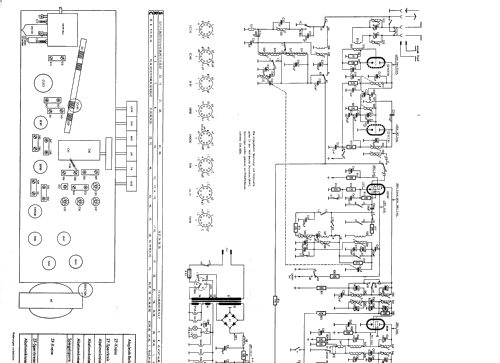

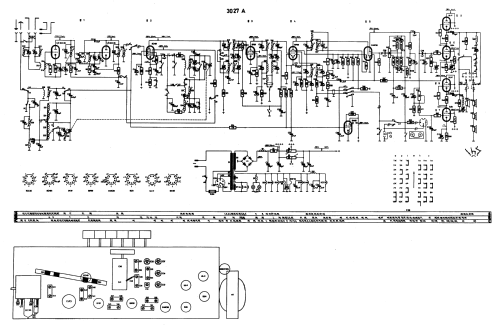

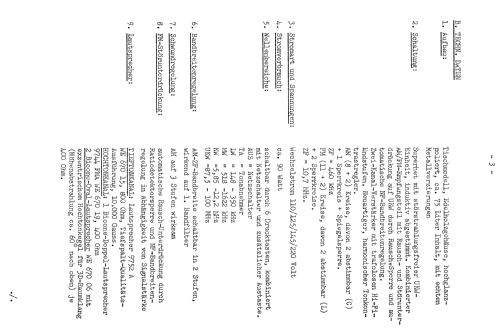

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Stéphane Geslain. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
